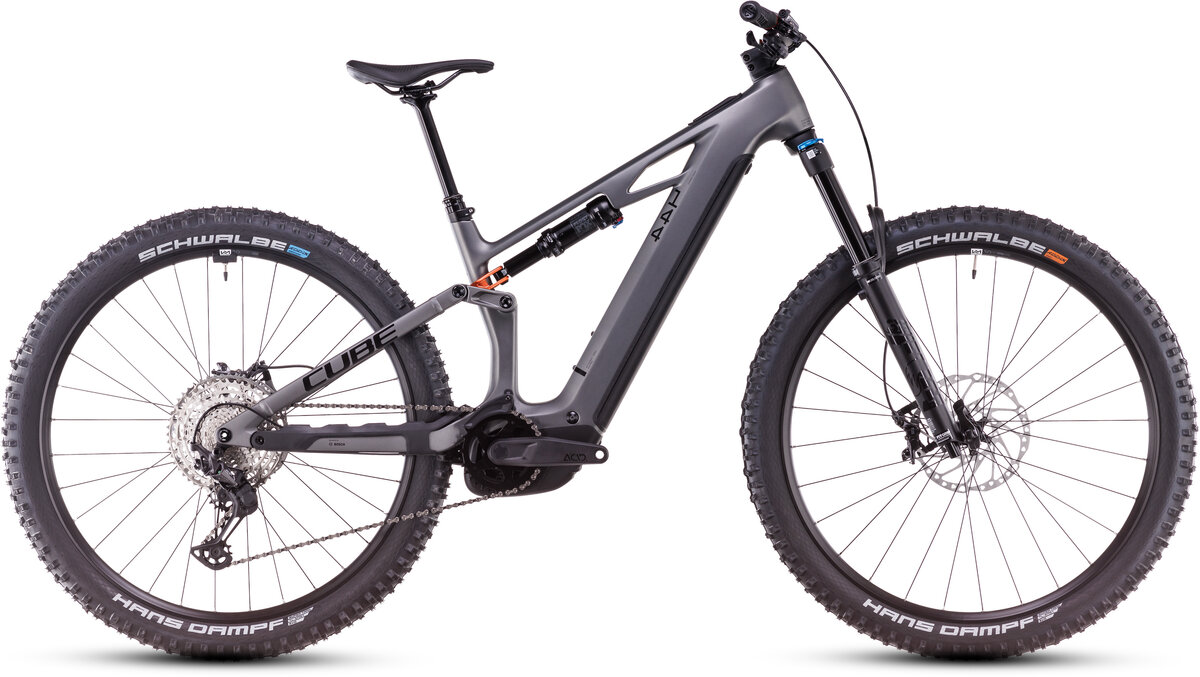

CUBE Bikes Stereo Hybrid ONE44 HPC SLX 800
Details
The secret of a really great bike is that it should just get out of the way and let you enjoy the ride. That's why, for the Stereo Hybrid ONE44 HPC SLX 800, we began with a 150mm Fox Float 36 Rhythm Grip fork and matching Float Performance shock. Combined with a Newmen Performance 30 wheelset and Schwalbe 2.6in tyres, it's the closest we can get to a magic carpet ride. Bosch's CX drive unit and an 800 Wh battery deliver up to 85 Nm of torque to the trail via Shimano's slick-shifting, legendarily reliable XT 1x12 gears. And strong, progressive Shimano XT 4-piston hydraulic disc brakes with 203mm rotors bring you safely to a stop, on demand. With a remote dropper post included in the mix, you simply need to add your spirit of adventure.
| Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Geometry Position | Slack / Moderate | Slack / Moderate | Slack / Moderate | Slack / Moderate |
| Seat tube (cm) | 370 | 405 | 420 | 480 |
| Top Tube Horizontal (cm) | 567 | 596 / 598 | 626 / 627 | 669 / 671 |
| Seat angle | 76° | 76.2° / 76° | 76.2° / 76° | 76.2° / 76° |
| Head tube angle | 65° | 64.8° / 65.4° | 64.8° / 65.4° | 64.8° / 65.4° |
| Chainstays (cm) | 450 | 457 | 457 | 457 |
| Head tube (cm) | 128 | 106 | 120 | 148 |
| Wheelbase (cm) | 1201 | 1233 / 1226 | 1264 / 1256 | 1311 / 1303 |
| BB-Height to Hub (cm) | 11 | 30 | 30 | 30 |
| Protrusion height - 80mm (cm) | 733 | 748 | 748 | 748 |
| Reach (cm) | 425 | 452 / 450 | 477 / 475 | 512 / 510 |
| Stack (cm) | 606 | 620 / 622 | 632 / 634 | 658 / 660 |
Specs
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Fork | Fox 36 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm |
| Rear Shock | Fox Float Performance, 230x60mm (27.5: 210x55mm), Open/Firm Mode |
| Wheels | Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready |
| Tires | Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6/Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6 |
| Crankset | ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T |
| Shifters | Shimano XT SL-M8100-IR, Direct Attach |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Chain | KMC e12 |
| Brakes | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| Handlebars | CUBE Rise Trail Bar 35 |
| Tape/Grips | ACID Disrupt |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | ACID Venec EMTB Trail 140 |
| Motor | Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
| Battery | Bosch PowerTube 800 |
| Controller/Display | Bosch System Control, incl. Mini Remote |
| Charger | Bosch 4A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Slab Grey´n´Orange / Medium / 29-inch front / 27.5-inch rear | 04054571485564 | 895108M | BIK34602487Y |
| Slab Grey´n´Orange / Large / 29-inch front / 27.5-inch rear | 04054571485571 | 895108L | BIK34465248Y |
