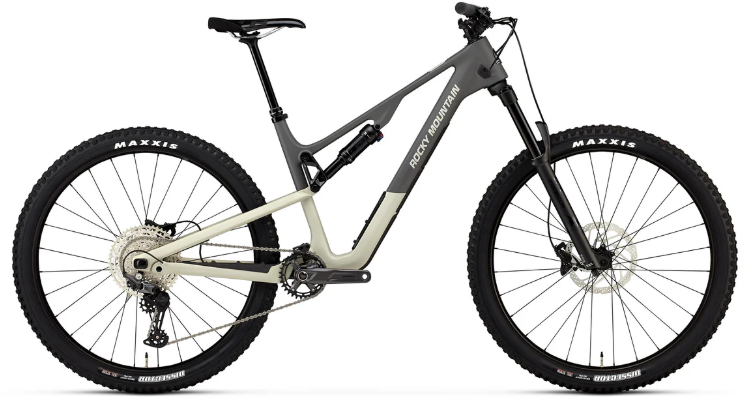

Rocky Mountain Instinct C30

Frame
SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle

Fork
Marzocchi Z2 Float EVOL Rail 150mm | 44mm Offset

Front Travel
150

Shock
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ

Rear Travel
140

Headset
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race

Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm

Handlebar
Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips
Rocky Mountain Lock On Light

Brakes
Shimano MT4120 4 Piston | Resin Pads

Shifters
Shimano Deore 12spd

Rear Derailleur
Shimano Deore 12spd

Cranks & Chainring
Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket
Shimano SM-BBMT500

Cassette
Shimano Deore 10-51T 12spd

Chain
Shimano M6100

Front Hub
Shimano TC500 | 15mm Boost

Rear Hub
Shimano TC500 Boost 148mm

Spokes
2.0 Stainless

Rims
WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl

Tires
Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready | Tubeless Set Up | Sealant Incl

Seatpost
X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm

Saddle
WTB Volt Race 142 | Cromoly rails

Weight
31.9 LBS|14.5 KGS
